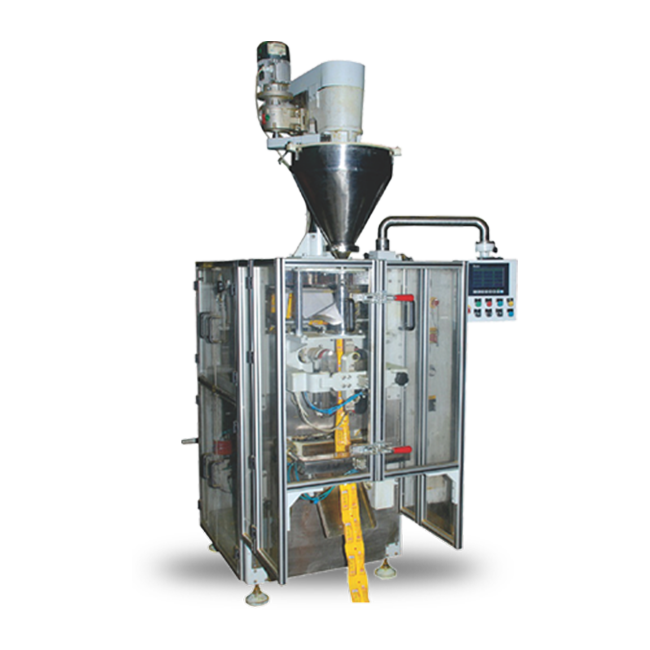

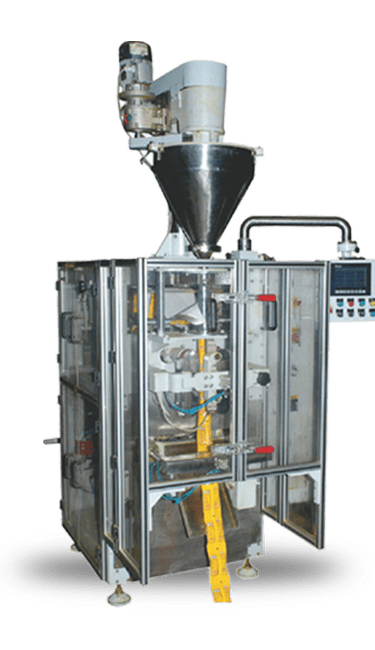

LDE-500 Single Track Machine

Technical Specification

Machine Speed: Up to 90 SPM Depending on the Product & Pouch Size

Type of Sealing: Center Sealing

Film Draw mechanism: Servo/Clutch-Brake Mechanism

Length of Pouch: Up to 300mm

Main Body Frame: S.S. Frame/ M.S. with Powder Coating

Max. Roll Width: 400mm

Max. Roll Dia: 250mm

Dimension: 1800mm(L) X 1100mm(W) X 2200mm(H)
