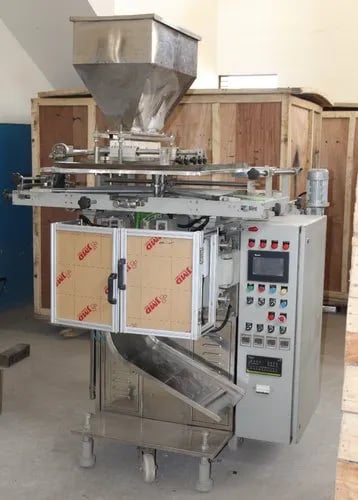

LDE-600 Multi Track Machine

Technical Specification

Machine Speed: Up to 90 SPM Depending on the Product & Pouch Size

No. of Tracks: Up to 6 Tracks

Type of Sealing: 4 Side Sealing

Film Draw mechanism: Servo/Clutch-Brake Mechanism

Length of Pouch: Up to 350mm

Main Body Frame: S.S. Frame/ M.S. with Powder Coating

Max. Roll Width: 600mm

Max. Roll Dia: 350mm

Compressed Air: 4CFM @ 6Kg/Cm Sq.

Dimension: 2000mm(L) X 1300mm(W) X 2200mm(H)
