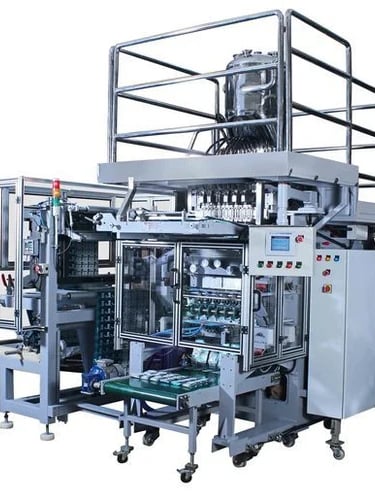

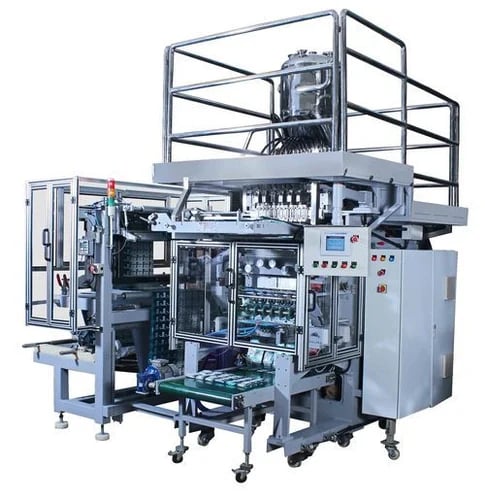

LDE-1200 Multi Track Machine

Technical Specification

Machine Speed: Up to 120 SPM Depending on the Product & Pouch Size

No. of Tracks: Up to 16 Tracks

Type of Sealing: 4 Side Sealing

Film Draw mechanism: Servo/ Electromagnetic Clutch-Brake Mechanism

Length of Pouch: Up to 250mm

Main Body Frame: S.S. Frame/ M.S. with Powder Coating

Max. Roll Width: 1000-1200mm

Max. Roll Dia: 400mm

Compressed Air: 4CFM @ 6Kg/Cm Sq.

Dimension: 3080mm(L) X 3120mm(W) X 3150mm(H)
