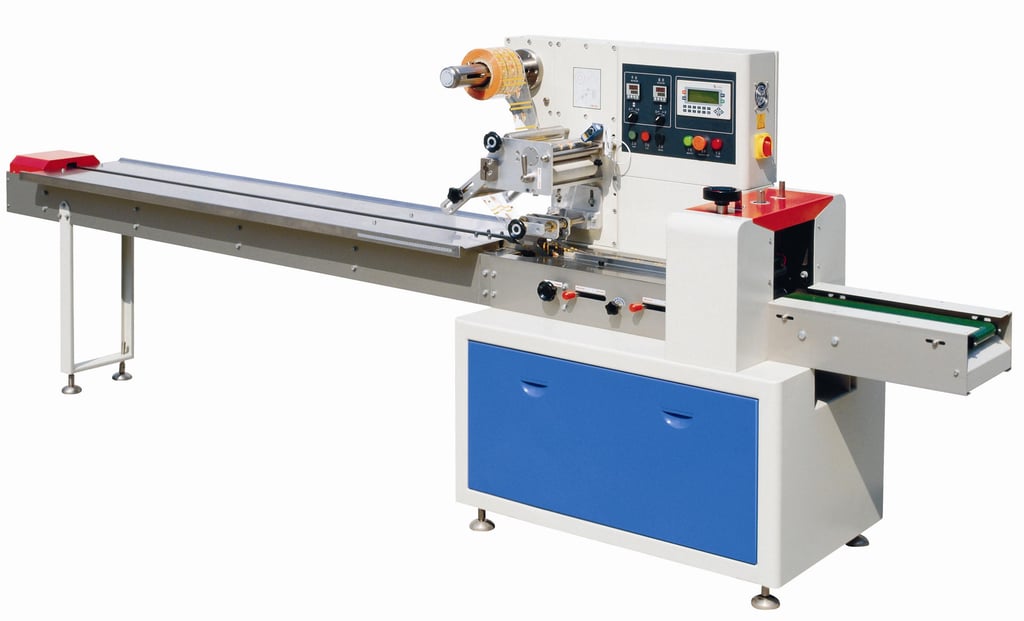

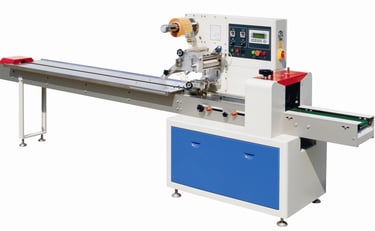

LDE-200 Flow Wrap Machine

Technical Specification

Machine Speed: Up to 300 SPM Depending on the Product & Pouch Size

No. of Tracks: Single Track

Type of Sealing: 3 Side Sealing/Center Sealing

Film Draw mechanism: Servo/ Electromagnetic Clutch-Brake Mechanism

Length of Pouch: Up to 250mm

Main Body Frame: S.S. Frame/ M.S. with Powder Coating

Max. Roll Width: 300mm

Max. Roll Dia: 200mm

Compressed Air: 4CFM @ 6Kg/Cm Sq.

Dimension: 3050mm(L) X 1700mm(W) X 2150mm(H)
